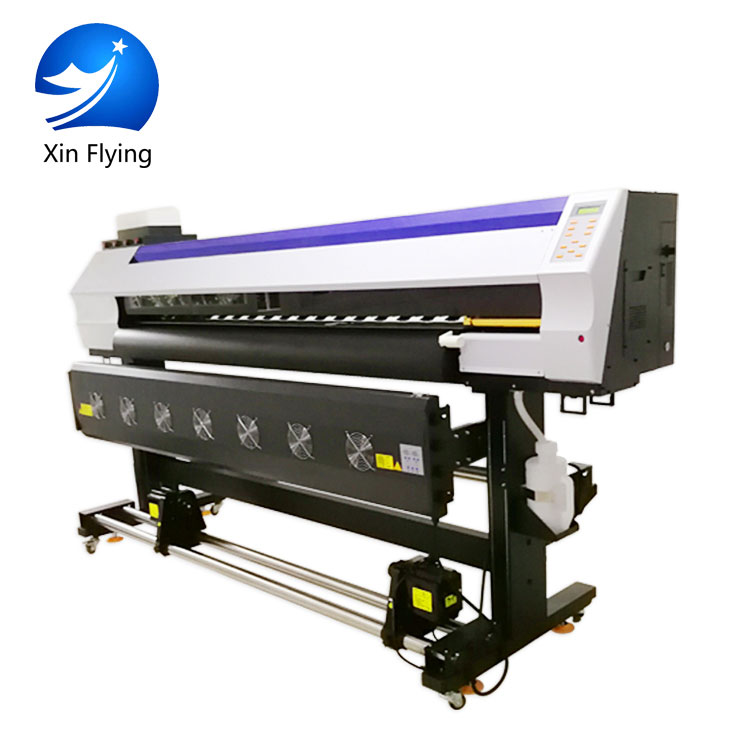

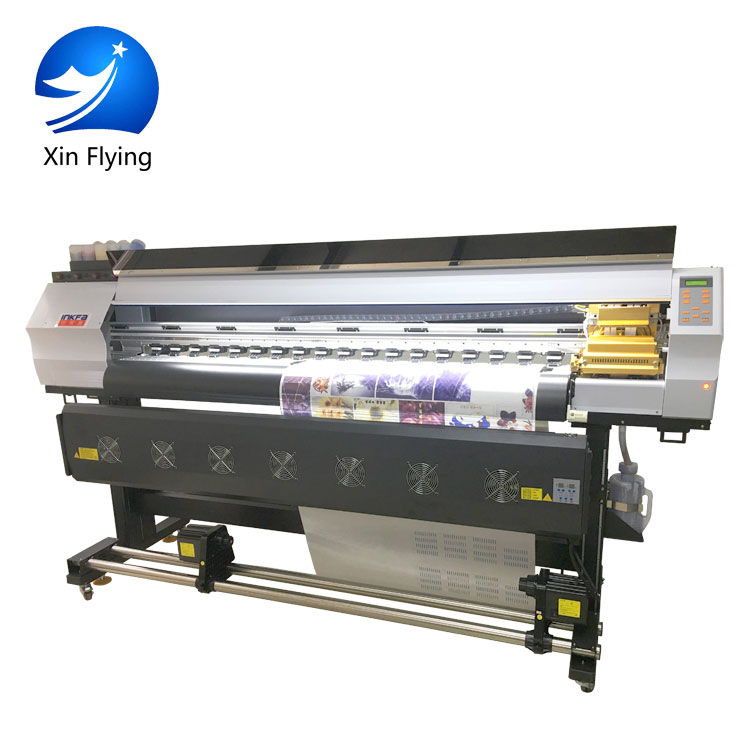

InkFa1900

Hotline0086-020-85640200
CONTACT US
DETAILS
Equipment parameter

Printer model InkFa-1900
Print head Epson 5113 , 2 print head ,Automatic cleaning,automatic flash spray moisturizing function.
Print resolution 3200DPI
Print speed 3 pass  360*720DPI   64 m²/h,
4 pass   720*720DPI  50 m²/h
Print width 1900mm
Ink type sublimation ink,color:CMYK
Print media sublimation paper
RIP software Maintop6.0, Photoprint
Operate system Win7 64,Win10
Document format JPG,TIFF,BMP,PDF etc
Computer configuration Hard disk: 500G, ATI independent video card, DVD drive, gigabit network card, 4G memory, Intel quad-core i5 processor.
Optional equipment heating system: external drying system, collection system: automatic collection and release roll paper series.
Work environment temperature: 20 -35, humidity: 35%-65%.
Power 50/60HZ, 220V, 16A,500W
Machine size 2820*840*1310mm,packing size:2950*930*980mm

Features:
1. High precision milling platform.The assembly precision of the machine printing platform is all controlled within the positive and negative 7.5 silk.Lay the foundation for high precision and high quality shipment;
2. The process of planting fine steel sand paper.Improve the resolution of the paper, and avoid the damage of the fabric when stepping or spraying.
3. Suction fan:Adopt the import quality strong suction paper fan, the board card supports the wind size adjustment, flexible to deal with the different thickness of the printing material, improve the printing accuracy;

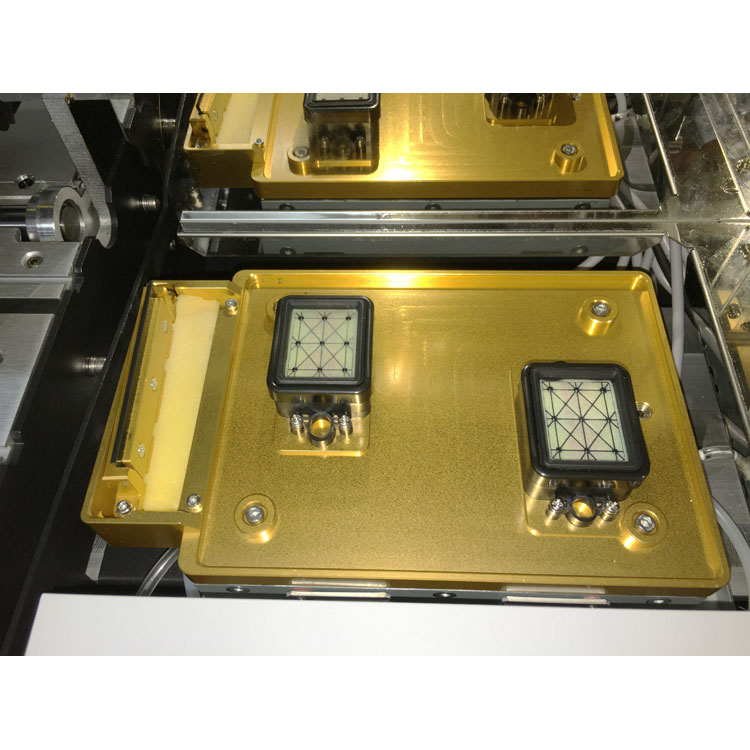

4. Maintenance station reflector:It is convenient to check whether there are impurities on the nozzle surface for easy cleaning.
5. The nozzle data line is equipped with humanized sponge protection design to reduce the accidental damage caused by flying ink.
6. Motor:Servo motor and stepper motor both adopt servo brushless integrated motor, high precision drive linear decoding, higher precision, smaller error, more stable operation.

Applications:
1.Garment:Fashion dress,cheongsam , cycling wear, sportswear, swimsuit, scarf, headscarf, T-shirt,beach shorts,scarves, non - cotton leather cloth.etc.
2.Home decoration: Towel, bath towel, curtain, mat, bath mat, sofa, wallpaper, wall cloth, table cloth etc.
3.Others: ribbon, luggage, flag, tent, mouse pad, yoga mat, foot pad, shoe material, umbrella, etc.



Details

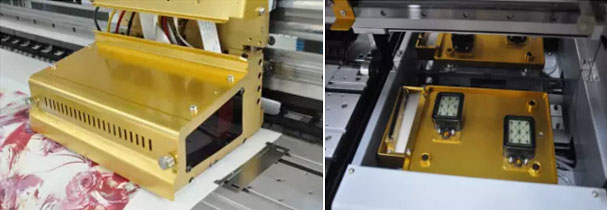

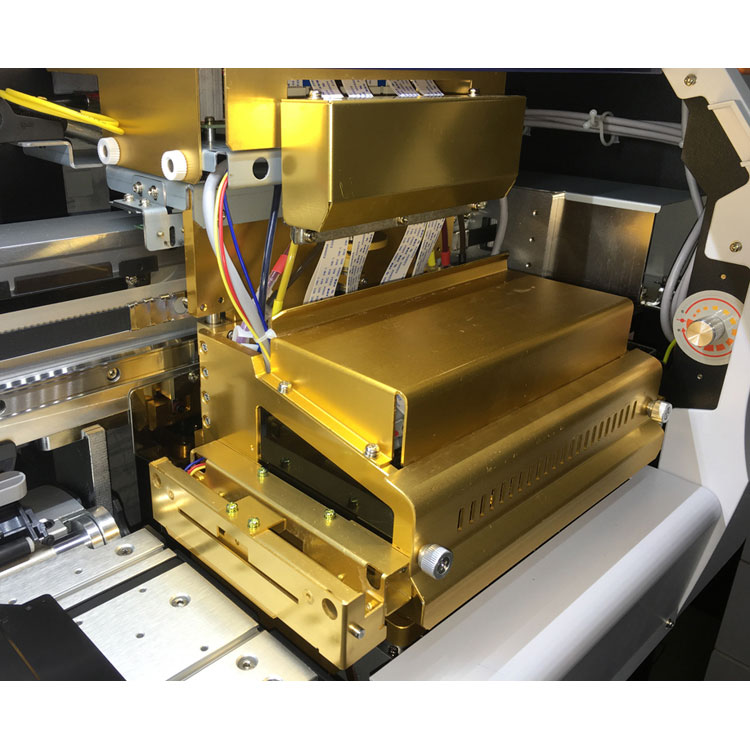

1.All - aluminum gold car frame, adjustment is convenient and quick.
2.Intelligent gold ink stack safety and convenient nozzle ,sprinkler cleaning and maintenance.

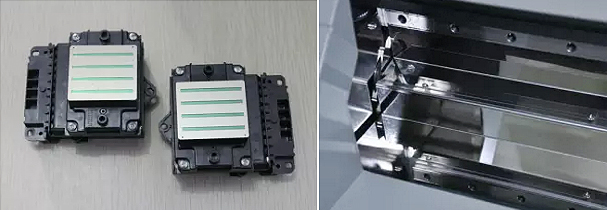

3.Epson 5113 print head is the twice speed to DX5
4.New LED reflector design,convenient to check in the printing effect
